TV PLL Sender
* D I S C O N T I
N U E D *
NEW
100mW VERSION AVAILABLE FEB. 1, 2005

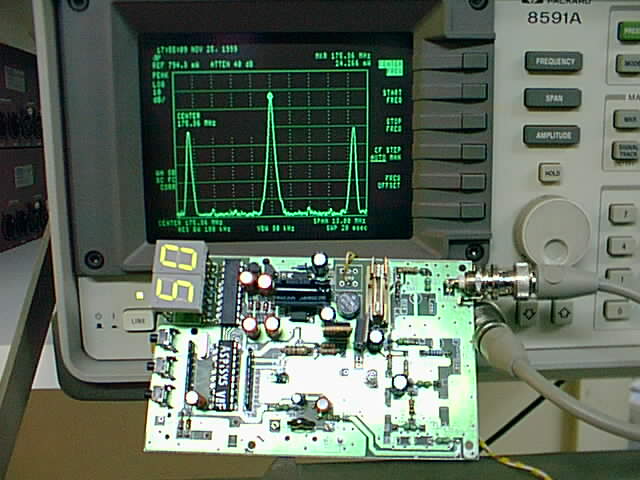

Photo during tests (The Spectrum Analyzer is
sold separately!).
TV PLL Sender is a color video/audio RF modulator / sender board for home or other use. You connect video and/or audio and send it wirelessly up to 100m (actual distance varies with surrounding conditions, guaranteed output 30mW minimum). The video input can be from a VCR or VCP, a CCTV camera, a video mux out, etc. It's also ideal for wireless monitoring from a distance, or any kind of surveillance including audio. Reception is on a regular television set on VHF III and S-VHF 11-30 (cable channels), or UHF IV-V. A different unit is required for VHF or UHF.
The most common use is the distribution of VCR/VCP to unlimited TV sets (within the reception range, approximately a 100m radius from the TV PLL Sender). You can change the RF output channel on the fly. Just press the UP or DOWN buttons to go to the next or previous channel, respectively. The transmission channel is always displayed on the 2-digit LEDs.
A third button, TEST/NORMAL, allows you to modulate a two-vertical-bar test screen that helps tune the TV set more easily. Press on this button again to display the actual video input.
Dimensions: 12cm (L) x 7.5cm (W) x 3.5cm (max Height).
Download product specification in PDF
(~116KB). Download usage instructions
(~134KB).
